Amorphous Core Transformer Development

Developed amorphous-core transformers in collaboration with Metglas Hitachi (Japan) to improve energy efficiency and sustainability. This project involved using FEA tools to optimize the design, reduce material costs, and enhance the transformer's performance. The work included creating detailed 3D models and fabrication drawings to ensure precise manufacturing and assembly.

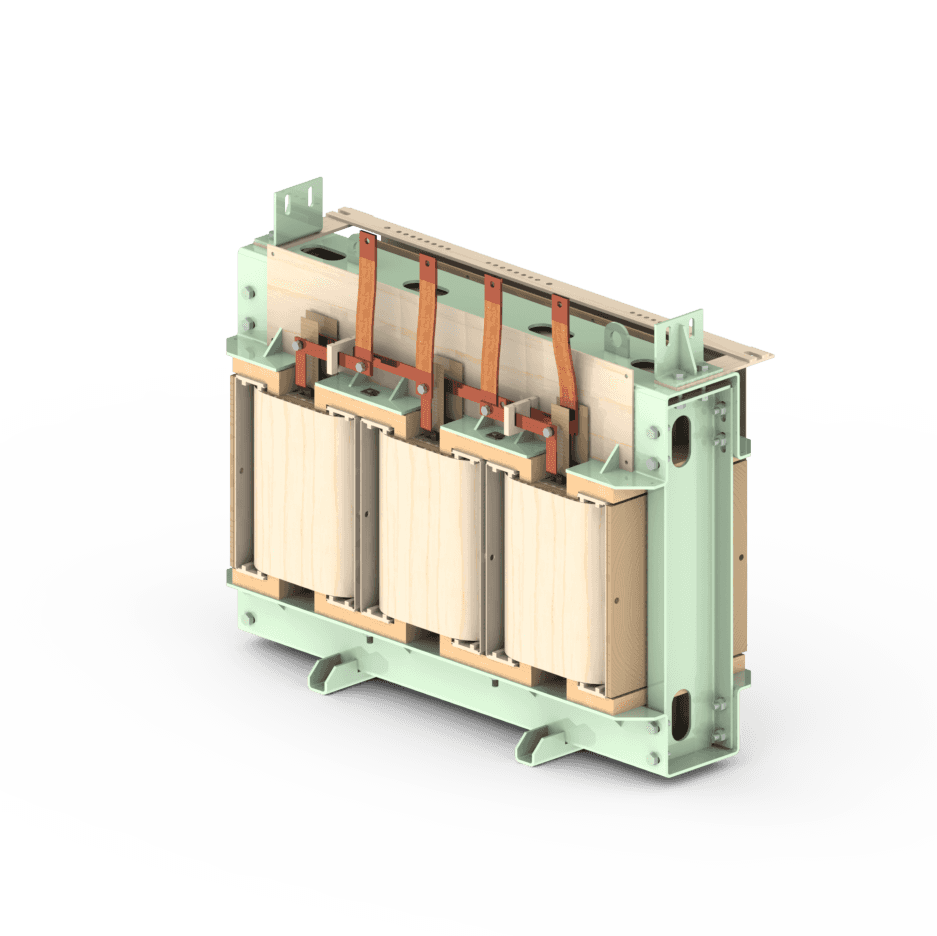

3D model of the amorphous core transformer assembly.

3D model of the amorphous core transformer assembly.

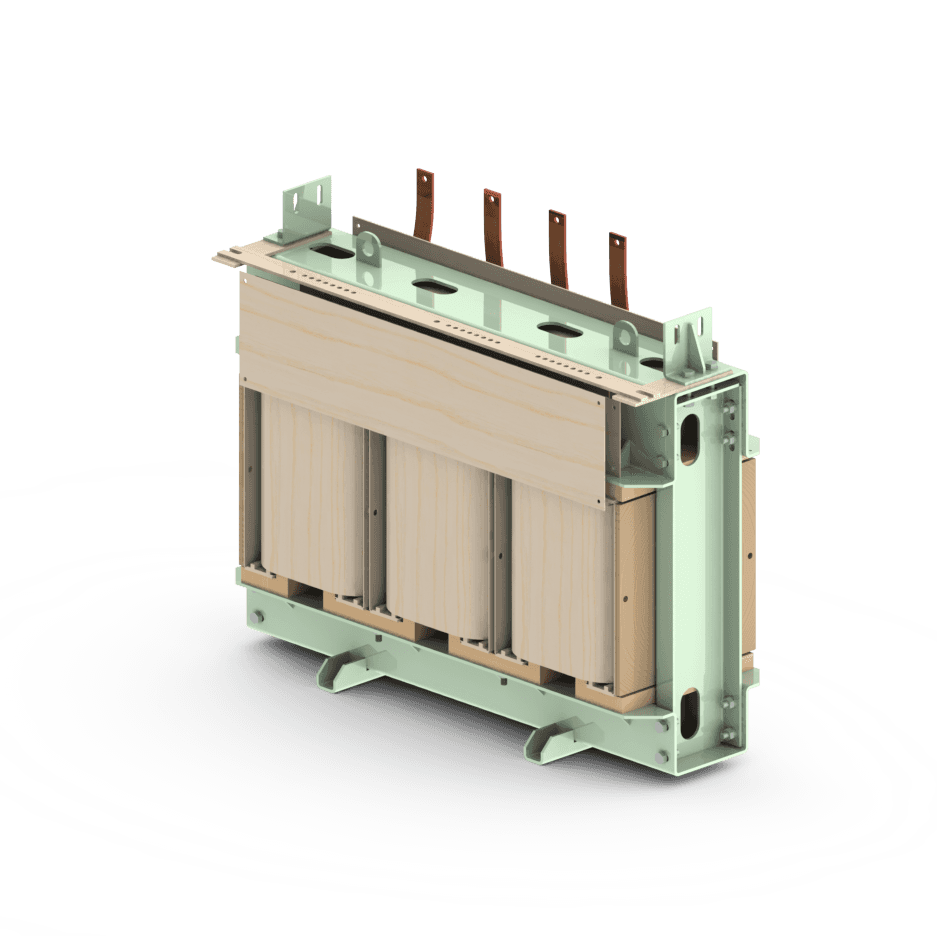

Side view of the amorphous core transformer 3D model.

Side view of the amorphous core transformer 3D model.

CAD software screenshot showing the transformer design.

CAD software screenshot showing the transformer design.

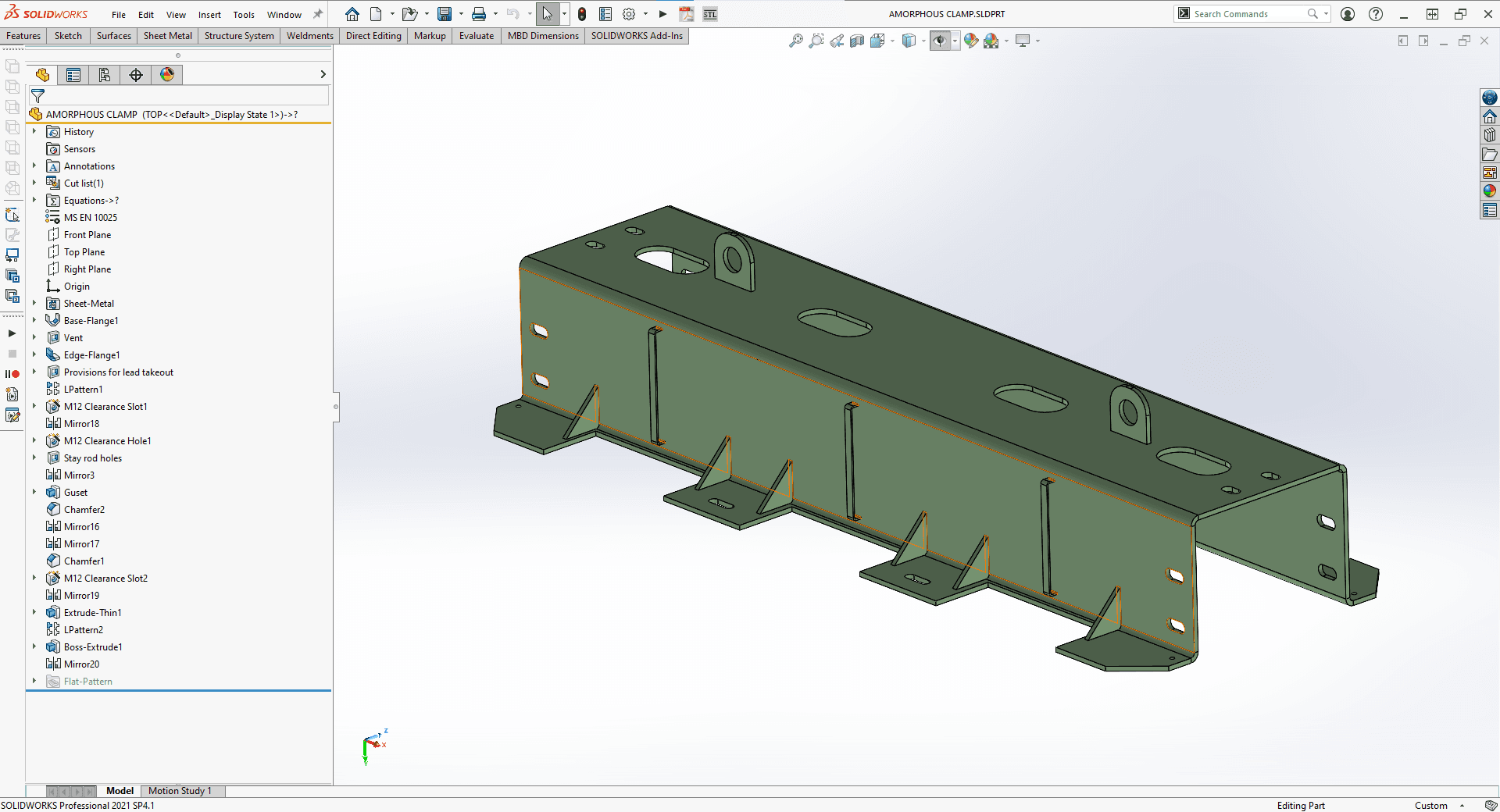

Detailed view of the transformer core in the CAD software.

Detailed view of the transformer core in the CAD software.

Amorphous core being assembled.

Amorphous core being assembled.

Transformer coils and core.

Transformer coils and core.

Final assembly of the transformer.

Final assembly of the transformer.

Transformer ready for testing.

Transformer ready for testing.
